How does the 10G SFP Duplex 300m 850nm LC Connector 10GBASE-SR MMF achieve high-speed short-distance transmission?

With the rapid development of data centers, enterprise networks, and cloud computing, high-speed optical modules have become a critical component of network construction. Among the many optical modules, the 10G SFP Duplex 300m 850nm LC Connector 10GBASE-SR MMF has become a popular choice for optical network deployment due to its high performance and stability.

Core Components of High-Speed ​​Optical Transmission

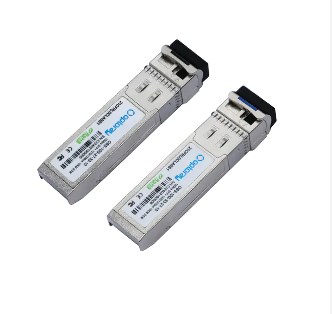

The 10G SFP Duplex module is a small form-factor pluggable (SFP) optical transceiver that supports the 10GBASE-SR standard and is designed for short-distance high-speed transmission. It uses an 850nm wavelength and achieves efficient data transmission through multimode fiber (MMF), with a maximum transmission distance of 300 meters. This type of module is designed to meet the needs of both high bandwidth and low power consumption, making it an important choice for internal data center interconnects and high-speed switching in enterprise local area networks.

The core advantage of this optical module lies in its duplex transmission capability. The duplex design means that the module simultaneously supports both sending and receiving data, significantly improving network bandwidth utilization and reducing the complexity of fiber optic cabling. Combined with the compact design of the LC interface, it is not only easy to deploy quickly but also compatible with most existing fiber optic cabling systems.

LC Interface: The Ideal Solution for High-Density Deployment

The LC connector, as a small fiber optic interface, is known for its small size, ease of plugging and unplugging, and high reliability. In the 10G SFP Duplex optical module, the application of the LC interface allows for high-density rack cabling while ensuring stable signal transmission. Its high number of mating cycles and superior mechanical performance ensure stable connections even during long-term operation.

For modern data centers, the interface design of optical modules not only affects the flexibility of equipment installation but also directly relates to network reliability. The miniaturization advantage of the LC interface allows network engineers to deploy more ports in limited space, while also reducing maintenance and upgrade costs.

Optimization of Multimode Fiber and 850nm Wavelength

The 10GBASE-SR standard defines the specifications for short-distance multimode fiber transmission, and the 850nm wavelength is its optimal choice. Multimode fiber has a larger core diameter, enabling multipath propagation of optical signals within the fiber, thus meeting the high-speed transmission requirements over short distances.

The 850nm wavelength exhibits low transmission loss and low dispersion in multimode fiber, ensuring high-quality signal transmission within a 300-meter range. Simultaneously, the optical module utilizes advanced laser technology to provide stable optical output power, reducing signal attenuation and bit error rate, thereby guaranteeing reliable high-speed data transmission.

High-Performance Design Ensures Network Stability

The 10G SFP Duplex optical module is designed with reliability and stability in mind. The module's core circuitry employs a low-power design, allowing it to operate for extended periods in high-density rack environments without overheating. The module also features automatic adjustment capabilities, adjusting transmit power based on fiber and link status to optimize signal quality.

This optical module has excellent adaptability to temperature and voltage variations, making it suitable for various network environments, including data center server rooms, enterprise office environments, and campus networks. Its plug-and-play feature reduces deployment complexity, making network upgrades and expansions more efficient and convenient.

Application Scenarios and Network Optimization Value

The 10G SFP Duplex 300m 850nm LC Connector optical module is primarily used in short-distance high-speed interconnection scenarios. Whether it's interconnecting core switches or providing high-speed connections between servers and storage devices, this optical module provides a stable, low-latency transmission channel.

In enterprise network construction, using this optical module can significantly increase network bandwidth, meeting the high-load demands of high-definition video conferencing, big data analytics, and cloud storage access. Simultaneously, the high-density deployment solution using multimode fiber and LC connectors makes the network architecture more flexible, facilitating future expansion and upgrades.

Maintenance and Compatibility Advantages

Compatibility and maintainability are key factors in the long-term use of optical modules. The 10G SFP Duplex module is compatible with various brands of switches and routers, supports hot-swapping, and can be replaced or upgraded without downtime, significantly reducing maintenance costs.

Furthermore, the module's standardized design ensures interoperability across devices and brands, making network construction more flexible and free from vendor lock-in. Stable optical signal transmission and low power consumption also reduce equipment failure rates and improve overall network reliability.

FAQ

Q1: What are the main differences between the 10G SFP Duplex module and other SFP modules?

A1: The 10G SFP Duplex module supports 10Gbps high-speed transmission, features a duplex design and 850nm wavelength, and is suitable for short-distance multimode fiber environments. Compared to low-speed or simplex modules, it offers higher transmission speed and stability.

Q3: What are the advantages of the LC connector in optical modules?

A2: The LC connector is small, easy to plug and unplug, supports high-density deployment, and offers high reliability, making it suitable for the fiber optic cabling needs of modern data centers and enterprise LANs.

Q3: Is the 10GBASE-SR standard suitable for long-distance transmission?

A3: 10GBASE-SR is primarily designed for short-distance multimode fiber transmission, suitable for high-speed interconnections within 300 meters. For longer distances, other standards such as 10GBASE-LR or 10GBASE-ER should be chosen.

Q4: Is this module difficult to maintain?

A4: The 10G SFP Duplex module supports hot-swapping, is compatible with multiple brands of equipment, and is easy to maintain, suitable for quick replacement and upgrades, resulting in low operating and maintenance costs.
